Legion AMP

128-Channel Preamplifier

Description

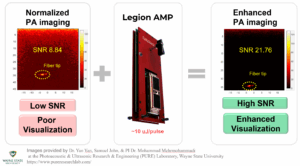

The LEGION AMP is a high channel count, compact footprint preamplifier for integration with third-party analog-to-digital converters; Boosting detection of small signals by +40 dB while minimizing background noise (high transmit voltages not supported).

Request a Quote
Features
  • Amplify input signals for third-party ADC units

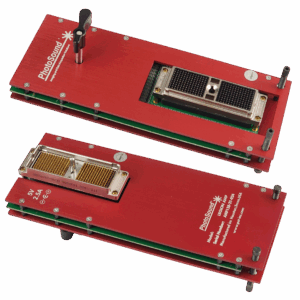

  • Protective housing with stand-offs
  • Cannon DLM260 input/output connectors

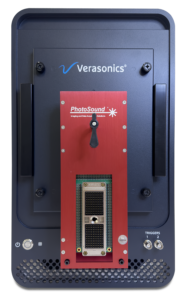

  • Narrow housing design for fitting two side by side
  • Compact 2 x 25 mm preamps per channel
  • Heavy-duty latch for locking preamp connection
Specifications
  • 128-channels
  • 40 dB amplification
  • 2.2 MΩ input impedance
  • 50 Ω output impedance
  • 40 kHz to 45 MHz analog bandwidth
  • Cannon DLM260 input/output connectors
Applications
Downloads
LEGION AMP Datasheet_2023Download
Legion AMP Sell Sheet_2023Download
