DIRECT MONITORING OF WHOLE-BRAIN ELECTRODYNAMICS VIA HIGH-SPATIOTEMPORAL-RESOLUTION PHOTOACOUSTICS WITH VOLTAGE-SENSITIVE DYE

Authors: Weiran Pang, Bowen Zhu, Honghui Li, Yingying Zhou, Chi Man Woo, Xiazi Huang, Tianting Zhong, Hsuan Lo, Laiyou Wang, Puxiang Lai, Liming Nie

Details are in the caption following the image

ABSTRACT

Brain voltage plays a crucial role in indicating internal functions or diseases, and optical voltage imaging has gained intensive attention in recent years. Despite encouraging progress, current implementations encounter limitations pertaining to penetration depth, field of view (FOV), and photostability of indicators. To mitigate these challenges, a robust voltage-sensitive dye (VSD)-based whole-field photoacoustic brain detection (WF-PABD) platform is proposed, enabling direct evaluation of voltage dynamics across the whole brain, forming as PA-VSD. WF-PABD is equipped with a 512-element ring-array ultrasound detector capable of 360-degree scanning, providing a large FOV (≈5 cm), high spatial resolution (≈110 µm), and rapid imaging acquisition. The proposed VSD remained ≈75% photostability after 30 min laser exposure, much greater than most calcium sensors. The optical voltage-response mechanisms are validated and the capability of PA-VSD to directly screen seizures is established. It is demonstrated that investigating connectivity among different brain regions allows to identify the precise location of active epileptic foci as well as the electrical conduction pathways and their directionality through fast temporal visualization. In summary, this study not only addresses the need for non-invasive, high-resolution, long-term, and direct monitoring of brain voltage but also empowers exciting venues for PA applications in neuroscience.

Click HERE to view publication

4D IN VIVO DOSIMETRY FOR A FLASH ELECTRON BEAM USING RADIATION-INDUCED ACOUSTIC IMAGING

Authors: Kristina Bjegovic, Leshan Sun, Prabodh Pandey, Veljko Grilj, Paola Ballesteros-Zebadua, Ryan Paisley, Gilberto Gonzalez, Siqi Wang, Marie Catherine Vozenin, Charles L Limoli and Shawn (Liangzhong) Xiang

ABSTRACT

Objective. The primary goal of this research is to demonstrate the feasibility of radiation-induced acoustic imaging (RAI) as a volumetric dosimetry tool for ultra-high dose rate FLASH electron radiotherapy (FLASH-RT) in real time. This technology aims to improve patient outcomes by accurate measurements of in vivo dose delivery to target tumor volumes.

Approach. The study utilized the FLASH-capable eRT6 LINAC to deliver electron beams under various doses (1.2 Gy pulse−1 to 4.95 Gy pulse−1) and instantaneous dose rates (1.55 × 105 Gy s−1 to 2.75 × 106 Gy s−1), for imaging the beam in water and in a rabbit cadaver with RAI. A custom 256-element matrix ultrasound array was employed for real-time, volumetric (4D) imaging of individual pulses. This allowed for the exploration of dose linearity by varying the dose per pulse and analyzing the results through signal processing and image reconstruction in RAI.

Main Results. By varying the dose per pulse through changes in source-to-surface distance, a direct correlation was established between the peak-to-peak amplitudes of pressure waves captured by the RAI system and the radiochromic film dose measurements. This correlation demonstrated dose rate linearity, including in the FLASH regime, without any saturation even at an instantaneous dose rate up to 2.75 × 106 Gy s−1. Further, the use of the 2D matrix array enabled 4D tracking of FLASH electron beam dose distributions on animal tissue for the first time.

Significance. This research successfully shows that 4D in vivo dosimetry is feasible during FLASH-RT using a RAI system. It allows for precise spatial (∼mm) and temporal (25 frames s−1) monitoring of individual FLASH beamlets during delivery. This advancement is crucial for the clinical translation of FLASH-RT as enhancing the accuracy of dose delivery to the target volume the safety and efficacy of radiotherapeutic procedures will be improved.

Click HERE to view publication

TOWARD REAL-TIME, VOLUMETRIC DOSIMETRY FOR FLASH-CAPABLE CLINICAL SYNCHROCYCLOTRONS USING PROTOACOUSTIC IMAGING

Authors: Siqi Wang, Gilberto Gonzalez, Daniel Rocky Owen, Leshan Sun, Yan Liu, Townsend Zwart, Yong Chen, Liangzhong Xiang

ABSTRACT

Background
Radiation delivery with ultra-high dose rate (FLASH) radiotherapy (RT) holds promise for improving treatment outcomes and reducing side effects but poses challenges in radiation delivery accuracy due to its ultra-high dose rates. This necessitates the development of novel imaging and verification technologies tailored to these conditions.

Purpose
Our study explores the effectiveness of proton-induced acoustic imaging (PAI) in tracking the Bragg peak in three dimensions and in real time during FLASH proton irradiations, offering a method for volumetric beam imaging at both conventional and FLASH dose rates.

Methods
We developed a three-dimensional (3D) PAI technique using a 256-element ultrasound detector array for FLASH dose rate proton beams. In the study, we tested protoacoustic signal with a beamline of a FLASH-capable synchrocyclotron, setting the distal 90% of the Bragg peak around 35 mm away from the ultrasound array. This configuration allowed us to assess various total proton radiation doses, maintaining a consistent beam output of 21 pC/pulse. We also explored a spectrum of dose rates, from 15 Gy/s up to a FLASH rate of 48 Gy/s, by administering a set number of pulses. Furthermore, we implemented a three-dot scanning beam approach to observe the distinct movements of individual Bragg peaks using PAI. All these procedures utilized a proton beam energy of 180 MeV to achieve the maximum possible dose rate.

Results
Our findings indicate a strong linear relationship between protoacoustic signal amplitudes and delivered doses (R2 = 0.9997), with a consistent fit across different dose rates. The technique successfully provided 3D renderings of Bragg peaks at FLASH rates, validated through absolute Gamma index values.

Conclusions
The protoacoustic system demonstrates effectiveness in 3D visualization and tracking of the Bragg peak during FLASH proton therapy, representing a notable advancement in proton therapy quality assurance. This method promises enhancements in protoacoustic image guidance and real-time dosimetry, paving the way for more accurate and effective treatments in ultra-high dose rate therapy environments.

Click HERE to view publication

REAL-TIME TRACKING OF THE BRAGG PEAK DURING PROTON THERAPY VIA 3D PROTOACOUSTIC IMAGING IN A CLINICAL SCENARIO

Authors: Siqi Wang, Gilberto Gonzalez, Leshan Sun, Yifei Xu, Prabodh Pandey, Yong Chen & Shawn (Liangzhong) Xiang

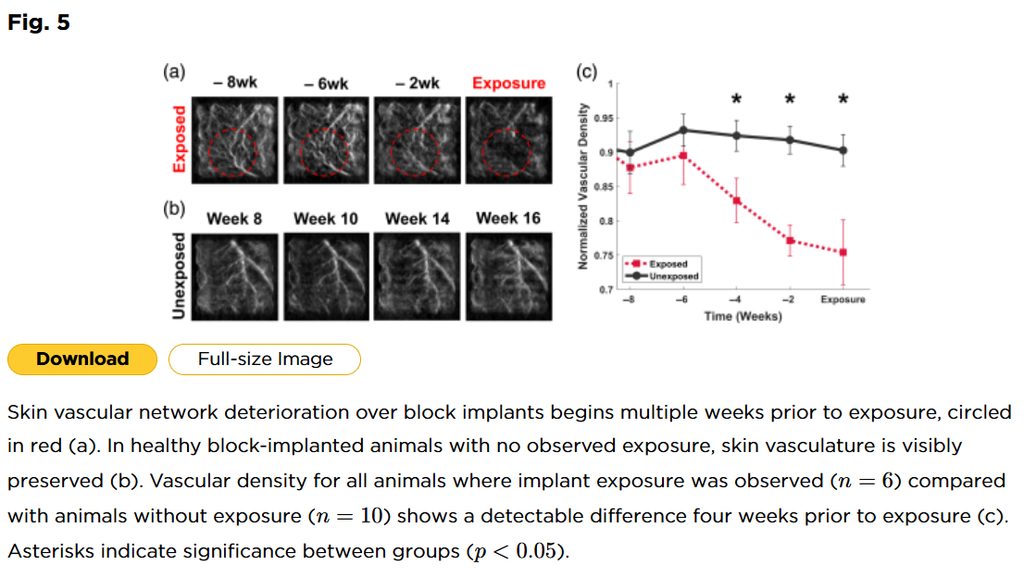

Fig. 5
ABSTRACT

Proton radiotherapy favored over X-ray photon therapy due to its reduced radiation exposure to surrounding healthy tissues, is highly dependent on the accurate positioning of the Bragg peak. Existing methods like PET and prompt gamma imaging to localize Bragg peak face challenges of low precision and high complexity. Here we introduce a 3D protoacoustic imaging with a 2D matrix array of 256 ultrasound transducers compatible with 256 parallel data acquisition channels provides real-time imaging capability (up to 75 frames per second with 10 averages), achieving high precision (5 mm/5% Gamma index shows accuracy better than 95.73%) at depths of tens of centimeters. We have successfully implemented this method in liver treatment with 5 pencil beam scanning and in prostate cancer treatment on a human torso phantom using a clinical proton machine. This demonstrates its capability to accurately identify the Bragg peak in practical clinical scenarios. It paves the way for adaptive radiotherapy with real-time feedback, potentially revolutionizing radiotherapy by enabling closed-loop treatment for improved patient outcomes.

Click HERE to view publication

Contrast Agent Development Application Note

TriTomTM Contrast Agent Develpoment

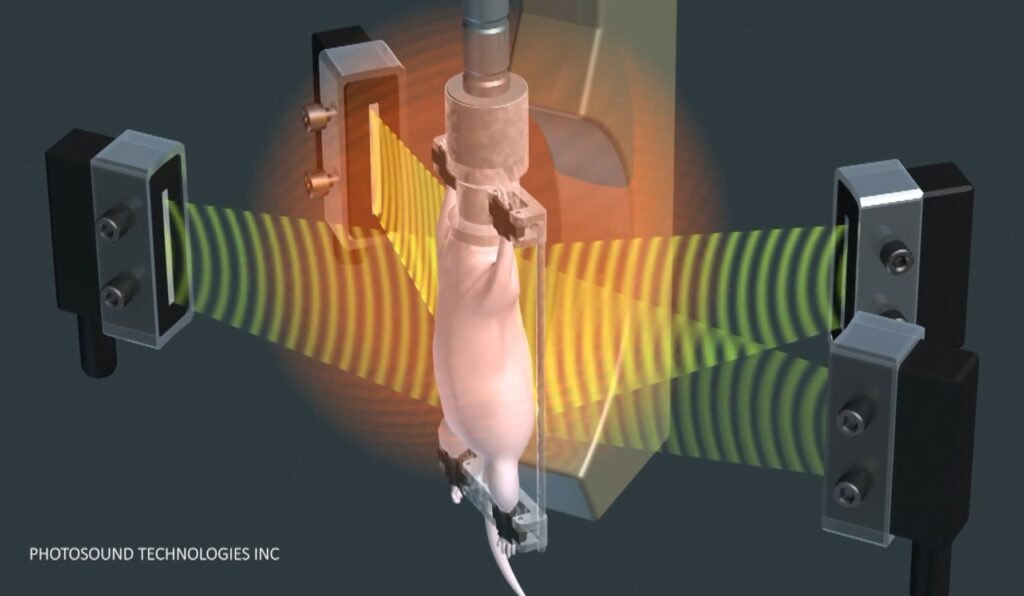

The development of novel optical imaging contrast agents requires extensive testing in both phantoms and animal models to ensure the safety and utility of the agent for in vivo applications. However, evaluating the biodistribution and clearance of a contrast agent remains challenging in preclinical studies due to limited whole-body real-time imaging technologies. The TriTom is a multimodal imaging platform that provides high-resolution photoacoustic (PA) and fluorescence (FL) images of small animal models. Here, we demonstrate TriTom analysis of a novel photoacoustic agent and highlight the system’s unique advantages for advancing optical contrast agent development.

SYSTEM SPECIFICATIONS

Imaging System        TriTomTM
Excitation Wavelengths   460 – 1300nm
Spatial Resolution    Up to 160 µm(PA)
                                           Up to 70 µm (FL)
Acquisition Time        36 s per scan

Contrast Agent Characterization

A critical step in developing novel photoacoustic contrast agents is determining the wavelength-dependent photoacoustic absorption spectrum. Indocyanine green (ICG) is a popular component of these agents, partly due to the ability to easily form J-aggregates (ICG-JA), which have increased stability and a stronger optical absorption in the NIR window. The TriTom provides high-resolution and high-sensitivity volumetric images of up to ten contrast agent samples in a single scan and requires minimal volumes (< 50 µL), which is beneficial for evaluating expensive or difficult-to-make contrast agents. Additionally, the ability to investigate multiple agents in a single scan allows for direct comparison to controls or other gold-standard references.

Figure 1: (a) Photoacoustic spectrum of ICG and ICG-JA measured with the TriTom. (b, c) 3D TriTom images of a sample phantom containing the same concentration of ICG and ICG-JA acquired with 780 nm (b) and 895 nm (c) laser excitation. Scale bar = 10 mm.
Data reproduced from [1].
Figure 2: Reconstructed PA coronal volumes showing the in vivo biodistribution of 0.4 mM ICG (left) compared to ICG-JA (right).  The TriTom’s high-resolution imaging allows for whole-body evaluation of contrast agent dynamics, accumulation, and clearance. (a) thoracic arteries; (b) spleen; (c) intestines; (d) liver (left lobe); (e) liver (median lobe). Scale bar = 10mm. [1]
