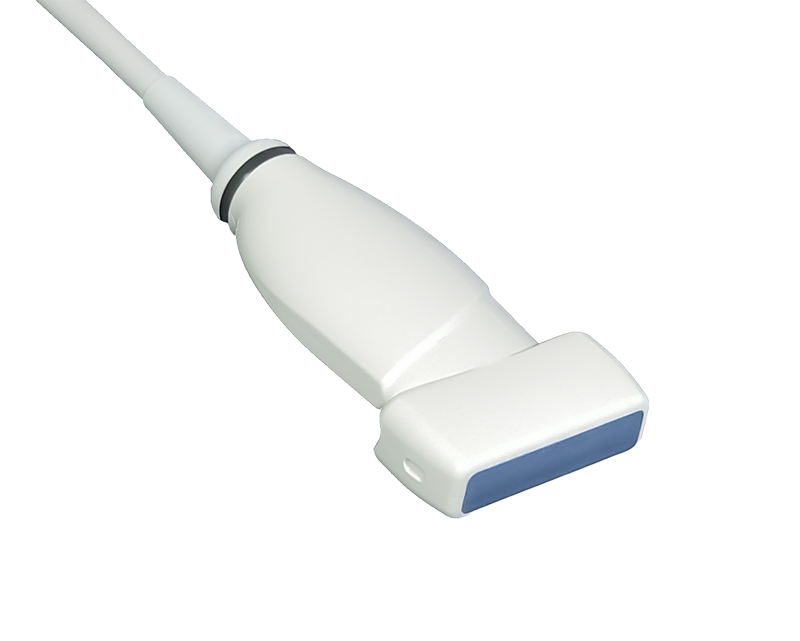

128-Element Probe
Description
The Linear Probe uses high-frequency ultrasound to create high-resolution images of structures near the surface of the body. This 128-element probe is ideal for vascular access and small-part imaging and is equipped with a frequency range of 5–12 MHz and a field of view of 40 mm.
Specifications
- 128 Elements
- Frequency range: 5.0 – 9.0 MHz
- Radius Curvature: 10 mm
- Field of View: 160°
- 5.2 mm (width)
- 26.24 mm (length of array)
- Pitch Between Elements: 0.205 mm
- Elevation Focus: 30 mm
Applications
- Vascular
- Small Pets
- Veterinary
- Pediatrics
